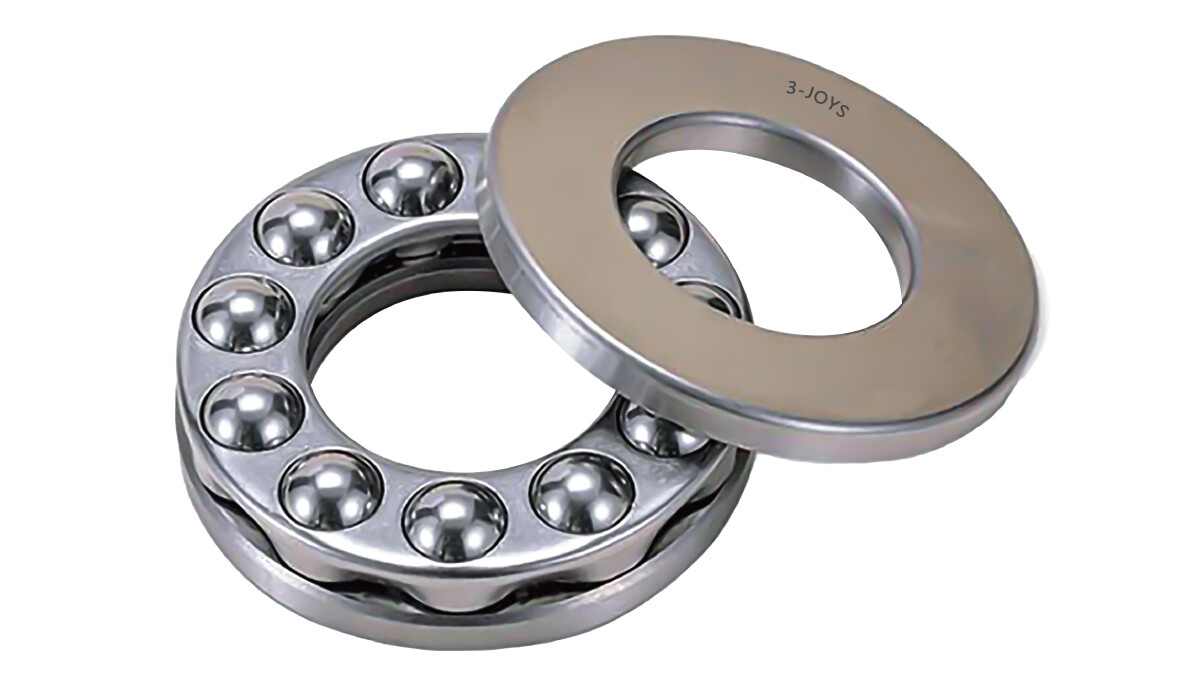

Thrust Ball Bearings
Thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They can sustain axial loads but no radial loads.
They are designed to accommodate applications as industrial fans, industrial pumps, metals, elevator parts, medical equipment, reduc- tion gears, sports equipment.

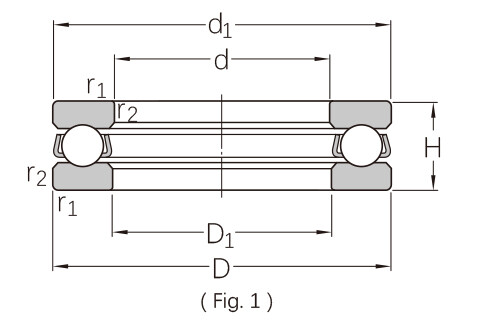

Single-direction thrust ball bearings ( Fig. 1 )
Consist of a shaft washer, a housing washer and a ball and cage assembly. Can accommodate axial loads and locate a shaft axially, in one direction only.

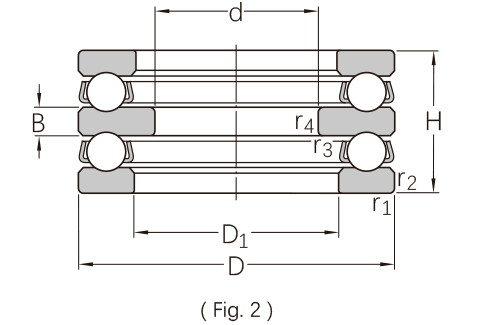

Double-direction thrust ball bearings ( Fig. 2 )
Consists of one shaft washer, two housing washers and two ball and cage assemblies. Can accomodate axial loads and locate a shaft axially, in both directions.

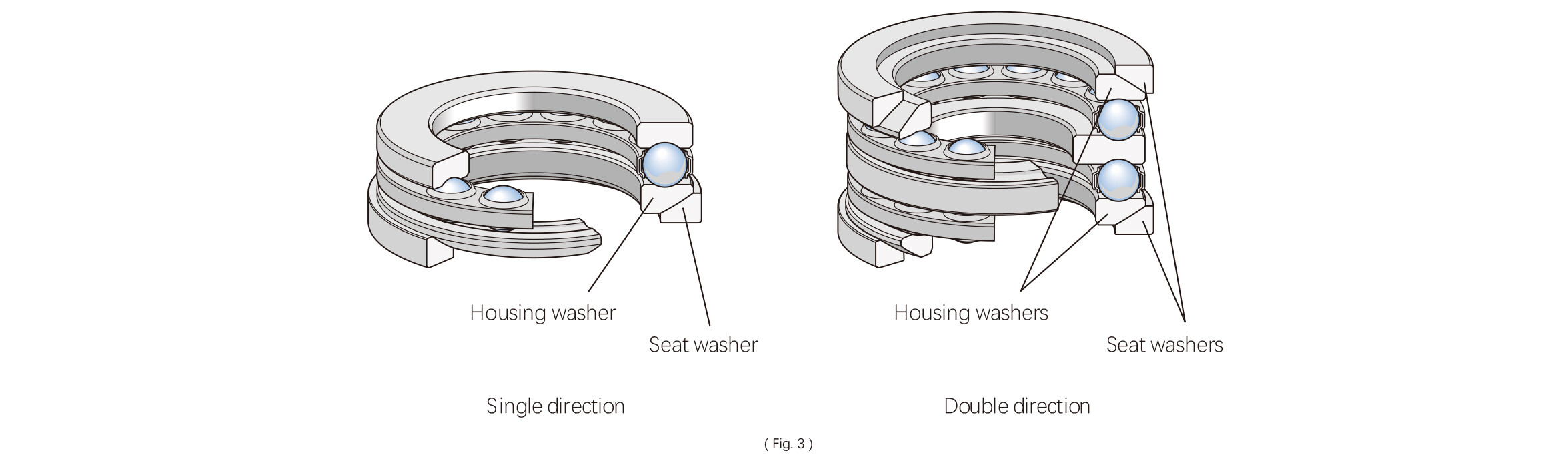

Bearing with sphered housing washers ( Fig. 3 )
They are designed to accommodate initial misalignment and are available in both single and double direction designs. Bearings can be used together with a sphered seat washer adjacent to the housing washer or adja- cent to a machine component manufactured with a sphered surface.
